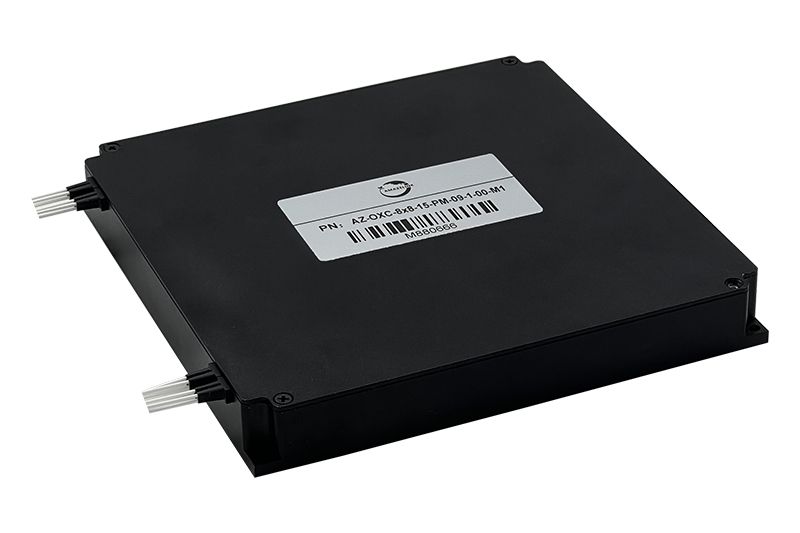

Enhance Optical Network Flexibility with MEMS MxN Single Mode Optical Cross-Connects
MEMS MxN single mode optical cross-connects play a crucial role in optical networks that require signal switching between different paths. These switches are designed to route signals among multiple input and output fibers, providing greater flexibility in optical network designs. Another advantage of our MEMS MxN single mode optical cross-connects is their scalability. They can easily expand to accommodate larger networks and can be configured to meet specific requirements for different applications.

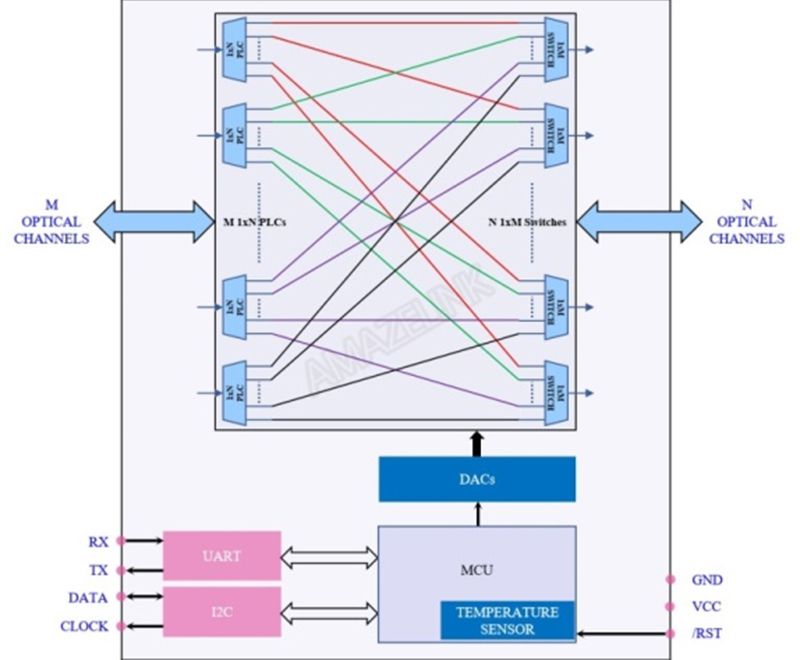

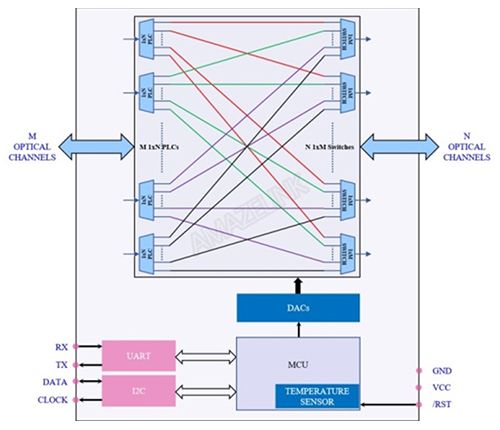

Schematic Diagram
Optical Specifications
| PARAMETER | UNIT | VALUE | |
| Wavelength | nm | 13:1290 ~ 1330 15:1525 ~ 1568 16:1600 ~ 1650 | |
| Test Wavelength | nm | 1310 / 1550 / 1625 or 1650 | |
| MxN | 16 x 16 / 32 x 32 / 64 x 64 | ||
| Insertion Loss | 4 x 4 | dB | ≤ 1.6, typical 1.4 |
| 8 x 8 | ≤ 1.8, typical 1.6 | ||
| 16 x 16 | ≤ 2.2, typical 2.0 | ||
| 24 x 24 | ≤ 2.4, typical 2.2 | ||
| 32 x 32 | ≤ 2.6, typical 2.4 | ||
| 48 x 48 | ≤ 2.8, typical 2.6 | ||
| 64 x 64 | ≤ 3.0, typical 2.6 | ||
| Return Loss | dB | ≥ 45 | |
| Repeatability | dB | ≤ 0.1 | |
| Crosstalk | dB | ≥ 50 | |
| PDL | dB | ≤ 0.35 | |
| WDL | 16 x 16 | dB | ≤ 0.6 |
| 64 x 64 | ≤ 0.8 | ||
| TDL | dB | ≤ 0.6 | |
| Switch Time | 16 x 16 | ms | ≤ 5 |
| 64 x 64 | ≤ 10 | ||
| Durability | cycle | ≥ 1 x 109 | |
| Maximum Optical Power | mW | ≤ 500 | |
| Latching Type | Non-latching | ||
